The ARIES algorithm as an example of a recovery algorithm used in database systems. It is used in many relational database-related products of IBM. ARIES uses a steal/no-force approach for writing, and it is based on three concepts: write-ahead logging, repeating history during redo, and logging changes during undo.

The second concept,

repeating history

, means that ARIES will retrace all actions of the database system prior to the crash to reconstruct the database state when the crash occurred. Transactions that were uncommitted at the time of the crash (active transactions) are undone. The third concept,

logging during undo

, will prevent ARIES from repeating the completed undo operations if a failure occurs during recovery, which causes a restart of the recovery process.

The ARIES recovery procedure consists of three main steps: analysis, REDO, and UNDO. The analysis step identifies the dirty (updated) pages in the buffer6 and the set of transactions active at the time of the crash. The appropriate point in the log where the REDO operation should start is also determined. The REDO phase actually reapplies updates from the log to the database.

Generally, the REDO operation is applied only to committed transactions. However, this is not the case in ARIES. Certain information in the ARIES log will provide the start point for REDO, from which REDO operations are applied until the end of the log is reached.

Additionally, information stored by ARIES and in the data pages will allow ARIES to determine whether the operation to be redone has actually been applied to the database and therefore does not need to be reapplied.

Thus, only the necessary REDO operations are applied during recovery. Finally, during the UNDO phase, the log is scanned backward and the operations of transactions that were active at the time of the crash are undone in reverse order.

In ARIES, every log record has an associated log sequence number (LSN) that is monotonically increasing and indicates the address of the log record on disk. Each LSN corresponds to a specific change (action) of some transaction. Also, each data page will store the LSN of the latest log record corresponding to a change for that page.

A log record is written for any of the following actions: updating a page (write), committing a transaction (commit), aborting a transaction (abort), undoing an update (undo), and ending a transaction (end). The need for including the first three actions in the log has been discussed, but the last two need some explanation. When an update is undone, a compensation log record is written in the log so that the undo does not have to be repeated. When a transaction ends, whether by committing or aborting, an end log record is written.

In addition to the log, two tables are needed for efficient recovery: the

Transaction Table and the Dirty Page Table

, which are maintained by the transaction manager. When a crash occurs, these tables are rebuilt in the analysis phase of recovery. The Transaction Table contains an entry for each active transaction, with information such as the transaction ID, transaction status, and the LSN of the most recent log record for the transaction. The Dirty Page Table contains an entry for each dirty page in the DBMS cache, which includes the page ID and the LSN corresponding to the earliest update to that page.

Checkpointing

in ARIES consists of the following: writing a begin_checkpoint record to the log, writing an end_checkpoint record to the log, and writing the LSN of the begin_checkpoint record to a special file. This special file is accessed during recovery to locate the last checkpoint information. With the end_checkpoint record, the contents of both the Transaction Table and Dirty Page Table are appended to the end of the log. To reduce the cost, fuzzy checkpointing is used so that the DBMS can continue to execute transactions during checkpointing

The

REDO phase

follows next. To reduce the amount of unnecessary work, ARIES starts redoing at a point in the log where it knows (for sure) that previous changes to dirty pages have already been applied to the database on disk. It can determine this by finding the smallest LSN, M, of all the dirty pages in the Dirty Page Table, which indicates the log position where ARIES needs to start the REDO phase. Any changes corresponding to an LSN < M, for redoable transactions, must have already been propagated to disk or already been overwritten in the buffer; otherwise, those dirty pages with that LSN would be in the buffer (and the Dirty Page Table). So, REDO starts at the log record with LSN = M and scans forward to the end of the log.

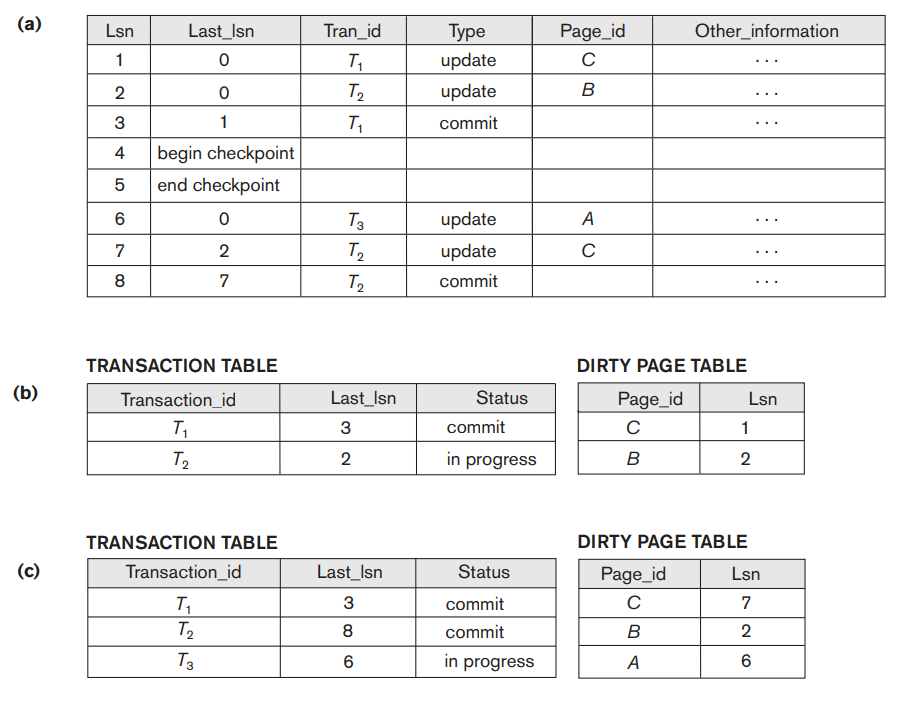

Fig 23.1:

There are three transactions: T1, T2, and T3. T1 updates page C, T2 updates pages B and C, and T3 updates page A. Figure 22.1(a) shows the partial contents of the log, and Figure 22.1(b) shows the contents of the Transaction Table and Dirty Page Table. Now, suppose that a crash occurs at this point. Since a checkpoint has occurred, the address of the associated begin_checkpoint record is retrieved, which is location 4. The analysis phase starts from location 4 until it reaches the end. The end_checkpoint record contains the Transaction Table and Dirty Page Table in Figure 22.1(b), and the analysis phase will further reconstruct these tables. When the analysis phase encounters log record 6, a new entry for transaction T3 is made in the Transaction Table and a new entry for page A is made in the Dirty Page Table. After log record 8 is analyzed, the status of transaction T2 is changed to committed in the Transaction Table. Figure 22.1(c) shows the two tables after the analysis phase.
